Quiz 07

The blank is: \(W_{22}^{(2)}\, g'(z_2^{(2)}) \, W_{21}^{(3)}\).

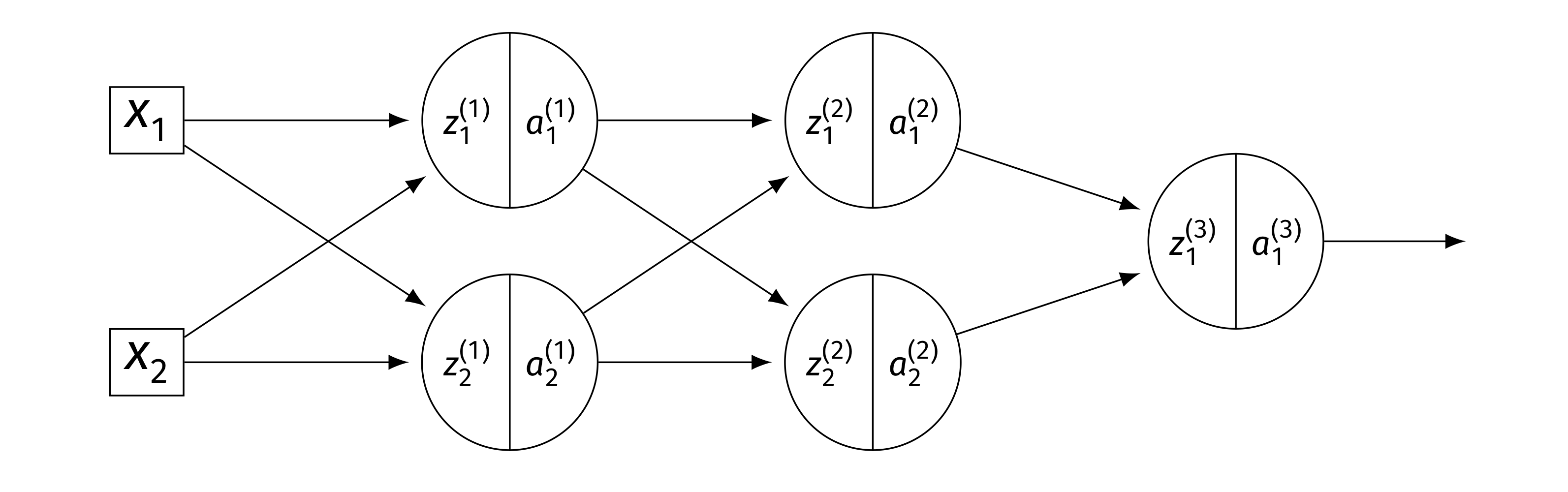

The weight \(W_{12}^{(1)}\) feeds into node 2 of layer 1, which connects to both nodes of layer 2 via \(W_{21}^{(2)}\) and \(W_{22}^{(2)}\). Each of those paths then continues to the output through \(W_{11}^{(3)}\) and \(W_{21}^{(3)}\), respectively.

The blank is: \(W_{12}^{(1)}\, g'(z_2^{(1)}) \, W_{21}^{(2)}\).

\(x_1\) feeds into both hidden nodes via \(W_{11}^{(1)}\) and \(W_{12}^{(1)}\). Each hidden node connects to the output. The full derivative is a sum over all paths from \(x_1\) to \(H\):

True.

The sigmoid function \(\sigma(z) = 1/(1 + e^{-z})\) satisfies \(\sigma'(z) = \sigma(z)(1 - \sigma(z))\). When \(H(\vec x) \approx 1\), the output of the sigmoid is near 1, so \(\sigma'(z) \approx 1 \cdot 0 = 0\).

Since every partial derivative \(\partial H / \partial W_{ij}^{(\ell)}\) includes the factor \(\sigma'(z^{(\text{out})})\)(by the chain rule through the output node), all partial derivatives are approximately zero.

False.

Since \(H(\vec x) \approx 1 > 0\), the output of the ReLU is in the linear region where \(g'(z) = 1\). The output activation does not zero out the gradient, and the partial derivatives need not be zero.

\(0\).

The contribution of point \((\vec x^{(1)}, y^{(1)})\) to the gradient involves the factor \((H(\vec x^{(1)}; \vec w) - y^{(1)}) = 1 - 1 = 0\). Since this factor is zero, the entire contribution to the gradient from this point is zero.

False.

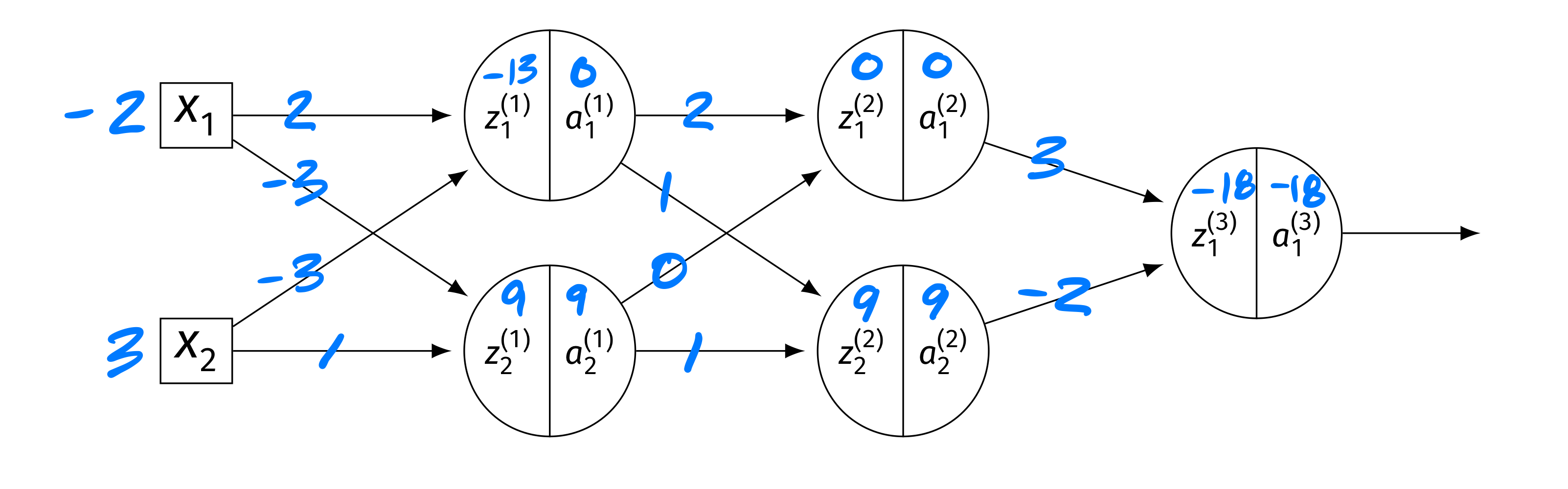

While \(z_1^{(2)} = 0\) means \(g'(z_1^{(2)}) = 0\)(treating \(g'(0) = 0\) for ReLU), the second node in layer 2 has \(z_2^{(2)} = 9 > 0\), so \(g'(z_2^{(2)}) = 1\) and gradient flows through it.

In particular, \(a_2^{(2)} = 9 \neq 0\), so the derivative of \(H\) with respect to the output weight \(W_{12}^{(3)}\) is \(\frac{\partial H}{\partial W_{12}^{(3)}} = \frac{\partial H}{\partial z_1^{(3)}}\cdot a_2^{(2)}\), which is nonzero since \(a_2^{(2)} = 9\).

Partial derivatives of parameters in layers far from the output become very small.

During backpropagation, the chain rule multiplies many factors together as the gradient propagates from the output back through each layer. If these factors are small (e.g., because of sigmoid activations whose derivatives are at most \(1/4\)), the product shrinks exponentially with depth. This means that parameters in early layers (far from the output) receive very small gradient updates and learn very slowly.

\(29\).

We count the number of weights and biases in each layer. Layer 1 (\(3 \to 4\)): \(3 \times 4 = 12\) weights \(+ \; 4\) biases \(= 16\). Layer 2 (\(4 \to 2\)): \(4 \times 2 = 8\) weights \(+ \; 2\) biases \(= 10\). Output (\(2 \to 1\)): \(2 \times 1 = 2\) weights \(+ \; 1\) bias \(= 3\). Total: \(16 + 10 + 3 = 29\).

\(37\).

We count the number of weights and biases in each layer. Layer 1 (\(2 \to 5\)): \(2 \times 5 = 10\) weights \(+ \; 5\) biases \(= 15\). Layer 2 (\(5 \to 3\)): \(5 \times 3 = 15\) weights \(+ \; 3\) biases \(= 18\). Output (\(3 \to 1\)): \(3 \times 1 = 3\) weights \(+ \; 1\) bias \(= 4\). Total: \(15 + 18 + 4 = 37\).

False.

Increasing the learning rate does not fix the vanishing gradient problem. Vanishing gradients arise because, during backpropagation, the chain rule multiplies many small factors together, causing gradients in early layers to shrink exponentially with depth. Increasing \(\eta\) scales all gradient updates equally, so the relative imbalance between layers remains: early-layer gradients are still exponentially smaller than later-layer gradients.

Actual solutions to the vanishing gradient problem include using ReLU activations (whose derivatives are \(0\) or \(1\), rather than always small), skip connections, and batch normalization.

\((4, 9)^T\).

To perform gradient descent, we need to compute the gradient of the risk. The main thing to remember is that the gradient of the risk is the average of the gradient of the loss on each data point.

So to start this problem, calculate the gradient of the loss for each of the three points. Our formula for the gradient of the squared loss tells us to compute \(2(\Aug(\vec x) \cdot\vec w - y) \Aug(\vec x)\) for each point.

Now, the initial weight vector \(\vec w\) was conveniently chosen to be \(\vec 0\), meaning that \(\operatorname{Aug}(\vec x) \cdot\vec w = 0\) for all of our data points. Therefore, when we compute \(\operatorname{Aug}(\vec x) \cdot\vec w - y\), we get \(-y\) for every data point. The gradient of the loss at each of the three data points is:

Point \((1, 3)\): \(2(0 - 3)(1, 1)^T = (-6, -6)^T\) Point \((2, 3)\): \(2(0 - 3)(1, 2)^T = (-6, -12)^T\) Point \((3, 6)\): \(2(0 - 6)(1, 3)^T = (-12, -36)^T\) This means that the gradient of the risk is the average of these three:

The gradient descent update rule says that \(\vec w^{(1)} = \vec w^{(0)} - \eta\nabla R(\vec w^{(0)})\). The learning rate \(\eta\) was given as \(1/2\), so we have:

\((3, 9)^T\).

Stochastic gradient descent works like gradient descent, but instead of computing the gradient of the risk over the entire data set, we compute the gradient over a mini-batch --- a small, randomly-chosen subset of the data. The gradient of the risk on the mini-batch is the average of the gradient of the loss on each point in the mini-batch.

The mini-batch consists of the 1st and 4th data points: \((1, 2)\) and \((4, 4)\). We compute the gradient of the squared loss at each of these points using \(2(\Aug(\vec x) \cdot\vec w - y) \Aug(\vec x)\).

Since \(\vec w = \vec 0\), we have \(\Aug(\vec x) \cdot\vec w = 0\) for both points.

Point \((1, 2)\): \(2(0 - 2)(1, 1)^T = (-4, -4)^T\) Point \((4, 4)\): \(2(0 - 4)(1, 4)^T = (-8, -32)^T\) The gradient of the risk on the mini-batch is the average:

Applying the update rule \(\vec w^{(1)} = \vec w^{(0)} - \eta\nabla R(\vec w^{(0)})\) with \(\eta = 1/2\):

False.

Each update step moves in the direction of steepest descent of the risk computed on the mini-batch, not the full training set. The mini-batch gradient is only an approximation of the true gradient of the empirical risk. This is what makes each iteration of SGD fast --- computing the gradient over a small mini-batch of \(m\) points is much cheaper than computing it over all \(n\) points --- but it means that the update direction is noisy.

False.

SGD typically requires more iterations than gradient descent to converge, because each update uses a noisy approximation of the true gradient. However, each iteration of SGD is much cheaper (\(O(md)\) vs. \(O(nd)\) for a mini-batch of size \(m \ll n\)), so SGD often converges faster in terms of total computation time.

False.

The loss surface of a neural network is non-convex, meaning it has many local minima. Different random initializations place the starting point at different locations on this surface, so gradient descent can follow different paths and converge to different local minima. This is one reason why initialization matters in practice.
